Swing-Arm Half-Motor Drive Unit for Monorail Transport Locomotives: Structure, Braking & Maintenance Guide

The swing-arm half-motor drive unit is a compact, modular traction device designed for monorail transport locomotives operating on I140E/I140V rail systems in underground coal mines. Built to adapt to varying gradient conditions, the swing-arm half-motor drive unit features a dual-brake system, fail-safe hydraulic braking, and a direct-drive radial piston motor — making it one of the most reliable and low-maintenance drive solutions available for underground monorail haulage applications.

What Is a Swing-Arm Half-Motor Drive Unit?

The swing-arm half-motor drive unit is the core traction component of a monorail transport locomotive. It converts hydraulic power from the locomotive’s hydraulic system into rotational torque, driving the friction wheel along the monorail rail to propel the locomotive and its payload.

Key design principles of the swing-arm half-motor drive unit include:

• Modular construction — simplified installation, replacement, and field maintenance
• Direct drive (no reduction gearing) — eliminates mechanical power loss through intermediate reduction stages, improving overall locomotive travel efficiency
• Rotating swing-arm bracket structure — allows the drive unit to self-adjust according to gradient conditions, maintaining consistent friction wheel contact pressure on the rail
• Imported radial piston hydraulic motor — German or British OEM motors as standard, ensuring reliability in demanding underground environments

According to international underground mine transport standards, drive unit reliability and braking performance are among the most critical safety parameters for monorail transport locomotives operating on gradients. The swing-arm half-motor drive unit is engineered to meet these requirements across a full range of operating conditions.

Drive Unit Structure and Key Components

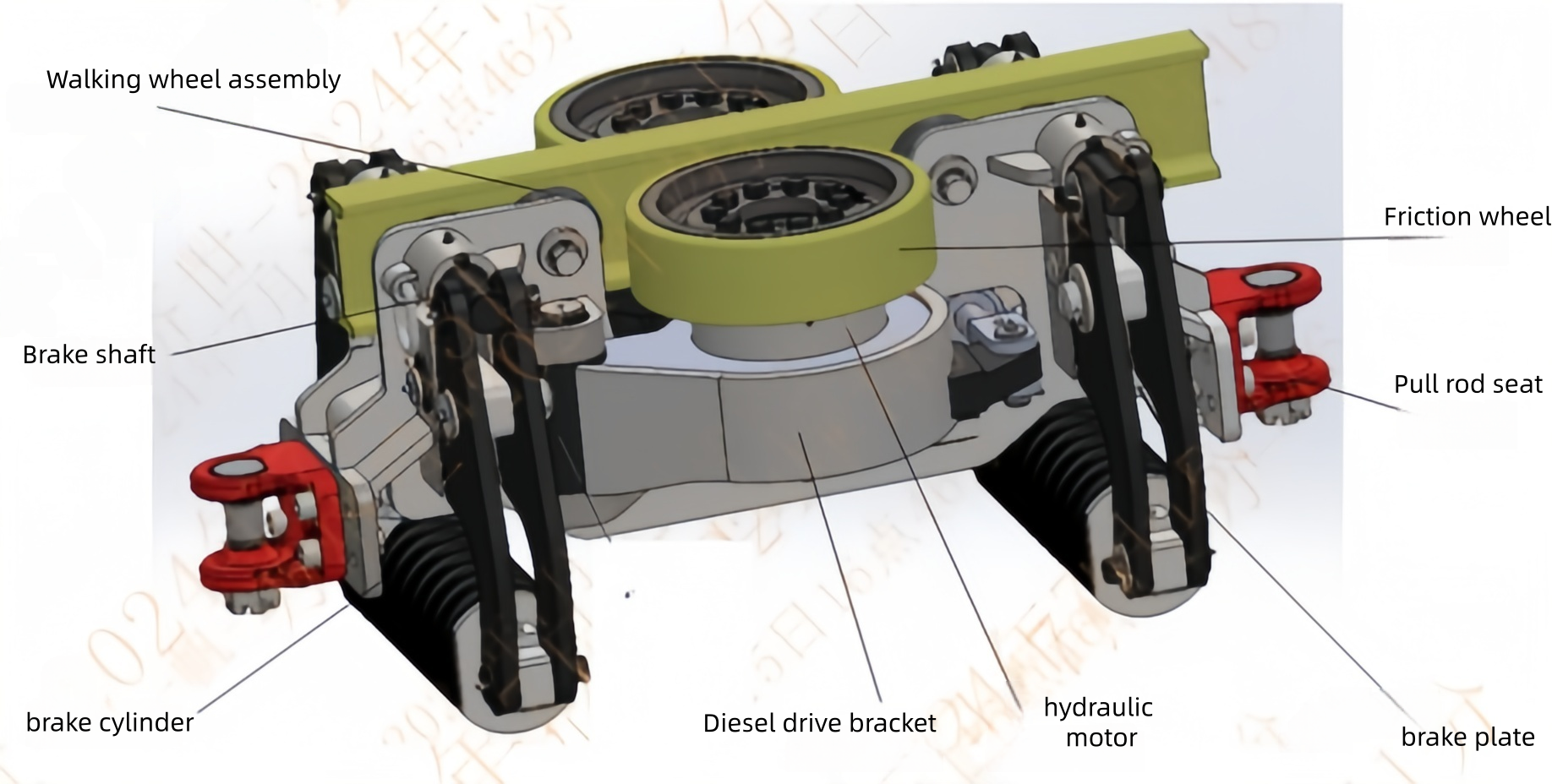

The swing-arm half-motor drive unit consists of the following core assemblies:

1. Drive Bracket (Swing-Arm Frame)

The rotating swing-arm bracket allows the entire drive assembly to pivot in response to gradient changes, ensuring the friction wheel maintains consistent contact force against the monorail rail surface across flat, inclined, and curved roadway sections.

2. Radial Piston Hydraulic Motor

The hydraulic motor is a radial piston design sourced from German or British OEM manufacturers. The motor connects to the friction wheel via an intermediate short shaft — a direct drive configuration that eliminates the need for a reduction gearbox, reducing mechanical complexity and power transmission losses.

3. Friction Wheel

The friction wheel is the primary contact element between the drive unit and the monorail rail. It is driven directly by the hydraulic motor via the intermediate short shaft. The friction wheel diameter is a critical maintenance parameter (see maintenance section below).

4. Dual Brake System

The swing-arm half-motor drive unit is equipped with two independent brakes:

• Service brake — for normal deceleration and controlled stops during operation
• Safety brake — emergency brake activated automatically under hydraulic pressure loss

Each brake cylinder operates at a working pressure of 14–16 MPa. The braking force of a single brake is 1.5–2× the rated traction force of the drive unit, providing a substantial safety margin against runaway on uphill and downhill gradients.

Braking System: How It Works

The braking system of the swing-arm half-motor drive unit is a fail-safe design — meaning the brakes engage automatically when hydraulic pressure is lost, rather than requiring active hydraulic pressure to hold the brakes on.

Normal Operation

During normal locomotive operation, hydraulic pressure is applied to the brake cylinders, compressing the brake springs and releasing the brake pads from the rail web. The hydraulic motor drives the friction wheel, and the locomotive travels freely along the monorail.

Emergency Braking

When hydraulic pressure is released (either by operator command or system failure), the brake springs automatically clamp the brake pads against the rail web, bringing the locomotive to a controlled stop. This fail-safe mechanism is critical for preventing runaway accidents in two scenarios common in underground coal mines:

• Uphill rollback — locomotive loses traction and begins sliding back down the gradient
• Downhill runaway — locomotive accelerates beyond controlled speed on a descent

Braking Performance Standards

• At maximum load, maximum gradient, and maximum design speed (downhill): braking distance does not exceed the distance traveled in 6 seconds at that speed, in line with ILO underground mine transport safety standards
• At minimum load, maximum gradient (uphill): braking deceleration does not exceed 5 m/s²
• Hydraulic cylinder working pressure is adjustable to suit specific mine operating conditions

Technical Specifications — DC03-03B

Parameter	Unit	Value
Model	—	DC03-03B
Brake Pressure	MPa	14–16
Clamping Pressure	MPa	8–12
Rated Traction Force	kN	30
Max Operating Speed (horizontal)	m/s	2.2
Min Turning Radius — Horizontal	m	4
Min Turning Radius — Vertical	m	8
Max Gradient	°	≤25°
Drive Unit Weight	kg	590
Dimensions (L × W × H)	mm	1030 × 720 × 520

Maintenance and Inspection Guide

Regular inspection and maintenance of the swing-arm half-motor drive unit is essential for safe and efficient monorail transport locomotive operation. The following checks should be performed at scheduled maintenance intervals.

5.1 Routine Inspection Checklist

Clamping Cylinders

Inspect all clamping cylinders for hydraulic oil leaks. Any leakage from cylinder seals or fittings must be rectified before returning the locomotive to service.

Friction Wheel Hub Bolts

Check friction wheel hub bolts for loosening. Required tightening torque: 145 Nm. Bolts found below this torque must be retorqued immediately.

Load Wheel Bolt Axles

Verify load wheel bolt axle tightening torque. Required torque: 400–450 Nm.

Brake Pads — Wear Limit

Inspect brake pad thickness. When the pad dimension wears from 22 mm down to 17 mm, the brake pads must be replaced immediately. Operating with worn brake pads below this limit compromises braking force and is a safety violation.

Friction Wheel — Wear & Damage Inspection

Inspect friction wheel diameter and surface condition at each maintenance interval:

• Diameter wear limit: Replace when diameter wears from φ340 mm to φ320 mm
• Surface condition: Replace immediately if cracking, deformation, or rubber debonding is detected
• Replacement rule: Friction wheels must always be replaced in pairs

5.2 Lubrication Requirements

All moving points on the swing-arm half-motor drive unit must be lubricated with approved lubricating oil at regular intervals. Refer to the lubrication schedule specific to your mine’s operating hours and gradient conditions. Inadequate lubrication is a leading cause of premature wear in drive unit components.

Frequently Asked Questions

What rail systems is the swing-arm half-motor drive unit compatible with?

The swing-arm half-motor drive unit (DC03-03B) is designed for monorail transport locomotives operating on I140E and I140V rail systems, which are standard specifications for underground coal mine monorail haulage in China and export markets.

Why use a direct-drive radial piston motor instead of a gearbox-driven system?

Direct drive eliminates mechanical power loss through reduction gearing, improving locomotive travel efficiency. It also reduces the number of mechanical components, lowering maintenance requirements and failure points in underground environments where service access is limited.

What happens if the hydraulic system fails while the locomotive is on a gradient?

The fail-safe brake design means that any loss of hydraulic pressure — whether intentional or due to system failure — automatically engages the brake springs, clamping the brake pads against the rail web and bringing the locomotive to a stop. This prevents both uphill rollback and downhill runaway scenarios.

Can the braking pressure be adjusted for different mine conditions?

Yes. The hydraulic cylinder working pressure is adjustable to suit specific locomotive application conditions, including variations in gradient, payload weight, and roadway surface characteristics.

How often should brake pads be inspected?

Brake pad inspection should be included in every scheduled maintenance cycle. The wear limit (22 mm → 17 mm) must be checked regularly, with replacement frequency depending on operating hours, gradient severity, and braking frequency of the specific locomotive deployment.
